First Gear
Posts: 23

« Reply #15 on: September 26, 2016, 01:31:37 PM »

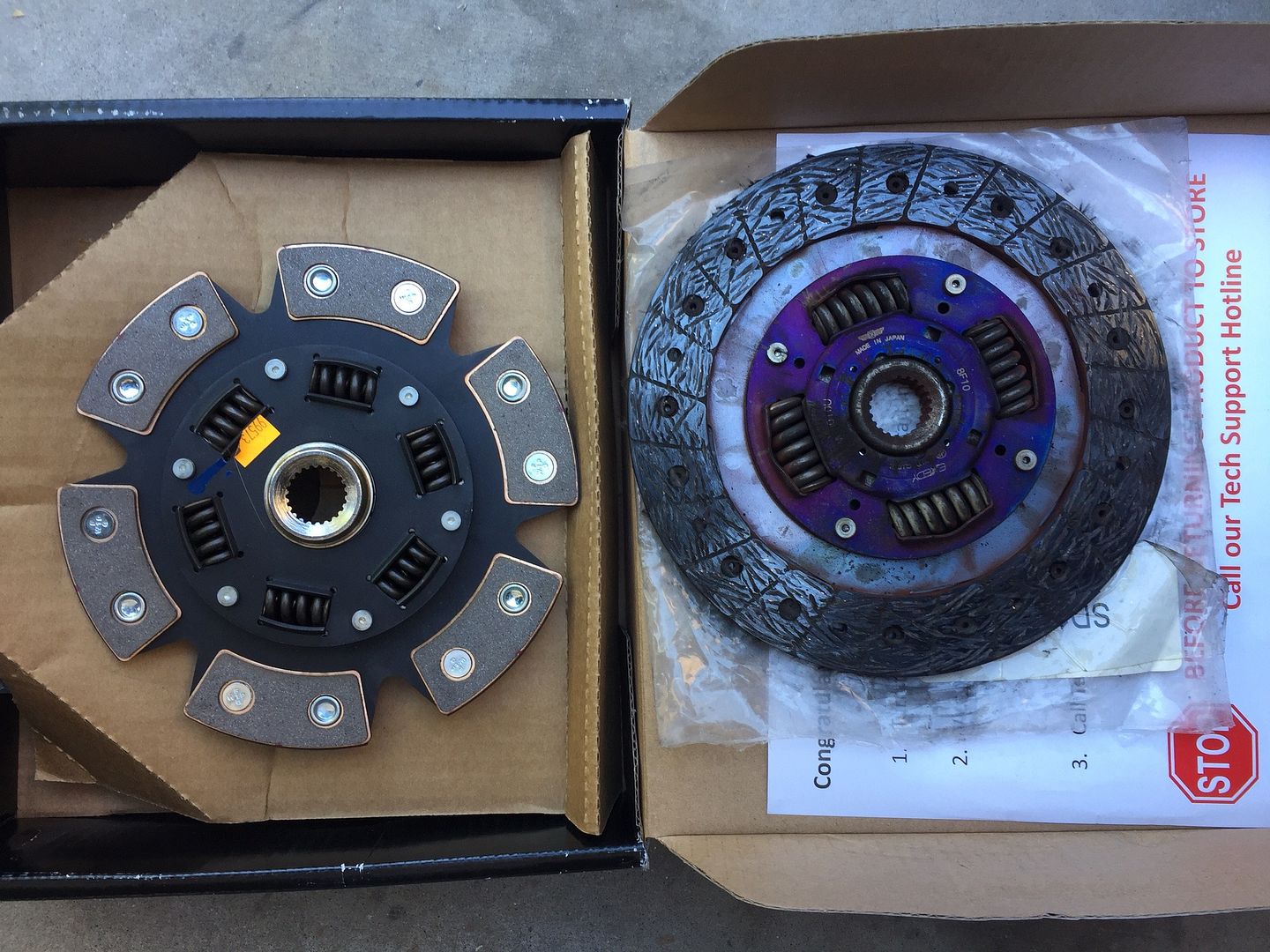

Saturday AM project complete, Orielly part

Fourth Gear
Posts: 491

« Reply #16 on: September 26, 2016, 02:00:25 PM »

let us know how that clutch is.  seems like one no one goes with.
Fifth Gear
Posts: 25931

« Reply #17 on: September 26, 2016, 02:15:04 PM »

Any particular reason you picked a puck clutch for street use??


4 Miatas but who's counting!!   Cool

White Knight    1991 Crystal White   #99 CSP
Silver Bullet     1992 Silverstone     #17 SM2  FM I+ Turbo  (Gone but not forgotten)
Honey B          1992 Sunburst Yellow #99 SM2 J.R. M45
Whooosh         2004 Titanium MazdaSpeed MX5  #403 of 4000
Subie              2006 Steel Gray WRX STi Cobb Stage 2 (Gone but not forgotten)
No name yet    2008 Velocity Yellow Tintcoat Z06 Corvette
No Name yet    2014 Ashen Grey Metallic Camaro 2SS 1LE

“There are only three sports: mountain climbing, bull fighting, and motor racing. All the rest are merely games.”
– Ernest Hemingway
First Gear
Posts: 23

« Reply #18 on: September 26, 2016, 02:52:38 PM »

Warranty is always a bonus, puck clutches have a higher torque capacity so it tends to take abuse better than a full face clutch, puck disc have less rotating mass so the lighter disc allows you to shift faster, the synchros in the transmission do less work to match the speed of the input and output shafts since there is less rotating mass on the input side. I could've gone with a lighter flywheel but from past experience they usually knock @ idle, (may not be @ initial startup, but usually once broken in it rears its ugly noise) and running an aluminum flywheel with a puck clutch will eat up the aluminum pretty fast. So for that reason I tend to always lean on a steel flywheel.
I have put on about 75 miles and it does have a bit of low rpm engagement chatter(which I expected), but if you ride it out with a little more RPM it engages fine, so far this clutch doesn't engage like a switch ("on/off") like some I have driven. Also in stop and go since we have a hydraulic clutch your leg doesn't feel the additional weight of a heavy pressure plate.
