Author Topic: FM2 Conversion - Notes, best practices, and things to watch out for  (Read 14128 times)
0 Members and 1 Guest are viewing this topic.
yenadar
2005 #36 Black Mica
Fifth Gear
*****
Posts: 1169


« on: April 07, 2014, 03:52:04 PM »

(I am sending this to FM as well, but putting it here in case it becomes useful to any other owners that get the kit before issues are resolved)

Here are the issues with the instructions or the conversion kit that I ran into. While I was expecting some random issues here or there, like manifold nut tightening difficulties, etc... I wasn't expecting this many issues with the kit itself, in terms of instructions missing or parts that simply didn't fit. I frankly expected better from FM, considering that this kit is one of their hallmark products. Some of the MSM specific stuff I can understand from a logistical perspective, given the ratio of naturally aspirated conversions vs MSM conversions, but not all of it.



There was no parts list available in the manual, and the part numbers that are referenced in the manual have an entirely different series (starting 2 digits) to what I actually got. The part number references are thus useless.

I received a lower radiator hose with my order, it was one of the items backordered that held up delivery even. No where in either MSM FM2 conversion manual is this radiator hose even referenced. A text search turns up only 1 occurance of "radiator" in either manual, at "drain the radiator" It is referenced in point #15 of Section 2, and point #9 in section 8, and all of section 12, for the "All Cars" FM2 installation manual. Note that in section 12 of the "all cars" manual, which has only 1 bullet point, it references "section 12 point 2", which doesn't exist. I assume it's referring to a different section which has since been re-numbered, but this point has not been updated.

The lower radiator hose at a minimum needs to be trimmed at the block end for the MSM. The MSM's block hard pipe angles upwards, where as non-MSMs angle downward. If you swap this pipe with one from an N/A block, you will have an easier time of it. Alternatively, you can but the MSM's hard pipe at the bend, so it is now pointing downwards, if a bit shorter. This is a permanent change however, and it would be easier to find an N/A pipe than it would be to find an MSM pipe. Even once the water hose is installed (which MUST be after the intercooler hose is secured to the turbo outlet), the radiator hose is under considerable tension at several points along it's length, as the angles that the hose is formed to are inappropriate for the MSM. Ideally, the silicone hose should make an abrupt 90 degree downturn, then curve across ~6 inches toward the front of the car, angle downward and outward slightly, then curve back up to get in line with the lower radiator attachment point. In a 2 dimensional world, the existing pipe is close to correct, but it needs more angle in the Z axis as well (which none currently exists), as it gets bent considerably around the PS/AC lines twisting downward then upward over the sway bar.


The instructions in all 3 manuals for mounting the assembly reference "The turbocharger, exhaust manifold, and turbine outlet casting have been pre-assembled at Flyin' Miata", however mine was not. I don't have a problem with this, as it probably would have delayed shipment far longer than it delayed me, but I still spent several hours looking between a couple of generalized pictures and the hardware laid out in front of me trying to figure out what goes where. The big stuff was easy, the small stuff like torque amounts, what needs washers or gaskets or RTV was not. I'm taking educated guesses for quite a few items. Future owners that get it all disassembled should have some sort of manual to reference for this.

The "gold bracket" referenced in all 3 manuals wasn't gold on mine, but the bracket for the wastegate actuator is. Not sure if this is normal, but if it is, you may want to be clearer about what is being referred to there.

The instructions in the two MSM manuals for the wire loom for the outboard water hose are really vague about where to actually route it. The wire loom should be mounted to the threaded hole in the bracket closest to the outlet for the turbo (hot intake side to intercooler), and should point about 45 degrees toward the block from 'forward'

The installer should have the banjo fittings already installed on the lower water line block end before the turbo gets mounted to the block. There isn't much room through the wheel well or from below for two hands, which are needed to get the banjo fitting in the hose and the hose anchored to the fitting.


The upper water line can't be secured with the supplied worm gear clamp, since it is tucked under the manifold against the block and there is no room to get a tool in there. I used a spare oem-style tension clamp that I had sitting around. Just make sure it's past the ridged tip of the OEM nipple and that the water line is fully on the nipple.

In the paragraph for when to connect the oil supply line, it references a 3" section of hose that needs to be put around the oil line and secured, to use as a shield against the bodywork. This hose needs to be sliced length-wise to fit around the oil line, as the inner diameter is far too small to fit around either end of the oil feed line's fittings. Fit around the line like a wire protector

If you have any studs come out of the head when removing the original manifold, or removed any studs to make fitting on the head easier, those studs need to be inserted back in before the FM manifold is tightened down, and need to be screwed in as the manifold is moved against the block, in progression. Most studs do not have clearance to be inserted with the FM manifold against the block if they have the nut still on the outter end. I highly recommend completely replacing any studs that come out of the block though. The difficulty of studs where the nut just backed out the stud instead of coming off the stud was noticeably harder all around. If the stud and nut are not free of each other, or the stud still in the block, it is noticeably more difficult to get everything torqued down. If you need to remove a stud to get the manifold into position, use 2 non-flanged nuts on the stud, tighten them against each other, then remove the stud with the inner nut. Properly angled wrenches just sqeezed together will break the nuts free once the stud is out.

A variety of strageties is needed to tighten the studs. I found that things were FAR easier if I used the "jack up the engine" method noted in the instructions for fitting the manifold, but then keeping it there until the studs are torqued. You gain angles and clearance on 3 nuts, and you can let the manifold hand at the end of the studs as you rotate them all inward in sequence. With the engine down, the manifold is pushed almost to the block from the frame rail.

If you are removing the MSM stock turbo assembly, replace the 2 14mm bolts that go into the engine mount plate before jacking up the engine. The motor mount plate gets out of alignment if you have them out when you jack up the engine

The top front stud doesn't have any clearance for a socket, you have to use a wrench, and the force needed means that it really needs to be a box end wrench. Box end wrenches typically don't have enough clearance due to the thickness of the end. Pick up a cheap 14mm wrench, they tend to be the thinnest, and you will still probably have to shave down the outter edge of the box to get it thinner. I still ended up having to remove the cam gears and then shield behind the gears, because it was in the way for proper angling of the wrench.


The lower front stud is difficult for similar reasons, only the blocking problem is the mount for the power steering pump. With the shaved down 14mm wrench, you can move it in 1/12th increments at a time though, enough to get it tightened. Use a 17mm+ wrench as a handle extension on the shaved 14mm to get the torque needed at the end.

The other three nuts on the top are easy, no complication, just use a box end wrench. The rear bottom two nuts are only really reachable with a socket and flex joint. HIGHLY HIGHLY recommend that you use a short 6-point 1/2" drive socket. 3/8" drive flex joints will shatter too easily, 12point sockets will round off off the nuts far easier, and long sockets keep running into the heater hose.

The center nut can be got at with the box 14mm wrench from the top. Again, clearance is a problem, but my cheapest 14mm wrench could just barely make it none of my more high quality wrenches had the clearance. You have to angle the wrench in from the side, sliding in forward of the bolt then rotating it around the end.


The manual states that you should bend the heater hose pipe, but not how far. If you don't bend it far enough (which i didn't), then once the FM manifold is riding on the studs, you can bend it further. Bend it TOO far though, and you won't be able to get the dipstick back into it's upper bolt point.

The EGR pipe might be able to fit with someone that can remove it, straighten the last bend a bit, then re-bend it slightly further down. Nothing I could do could get the EGR pipe to fit, namely because of the angle it was coming at the manifold from. I could get the tip of the pipe into the port on the manifold, but I couldn't stretch the pipe any farther to get the threaded fitting lined up to the manifold. I fabricated a block off plate and got a M22 1.50 thread pitch nut with some copper thread locker to just delete the EGR completely.

The oil drain pipe was almost 4 inches too long for mine. I'd have to crimp the hose in order for it to fit between the turbo and the pan. I trimmed the hose and it's in a very smooth curve from the turbo to the pan now. Recommend that this step be done while it's still lifted/tilted on the jack, BEFORE the engine is shifted back into the normal position

The turbo to intercooler hose references a 3" i/d intercooler end, although I found that it fits perfectly over a 2.5" intercooler inlet. Unsure if this is a typo or just a large fitment range possible. There is also no clamp supplied that can fit around this end at the intercooler, though this is probably entirely reasonable, assuming that you already have a clamp from your previous connection.

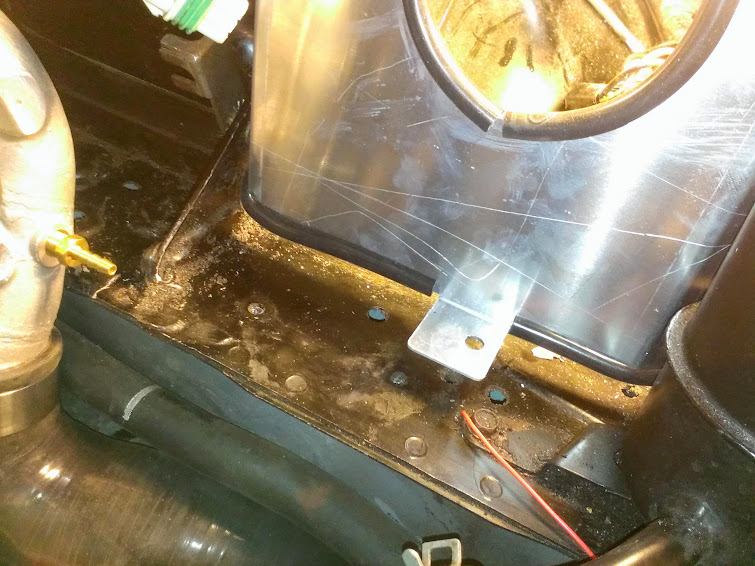

The air filter enclosure box, when secured at the upper bolt hole, sits more than an inch above the frame rail creating a gap around the entire bottom edge, and will damage the enclosure if the lower bolt is used to pull the enclosure down to the frame rail. You do have to remove the windshield washer mounting bracket which would otherwise slide under it, but it's ~1/8th inch thick, and does not come close to making up the difference. Once the lower edge is protected by the split silicone vacuum line, the gap can be filled with a length of foam, which is then held in place when the lower bolt is tightened to an appropriate length. Ideally a spacer should be used between the frame rail and the enclosure along the bolt, to ensure the bolt can be secured properly without damaging the enclosure


The air filter pipe itself is both too short and too straight. In order to secure each end of the MAF replacement pipe, it pulled the air filter hard against the side of the enclosure, and up at an angle that will require some cushioning against the hood. This is with minimum length inserted into the compressor inlet pipe of formed silicone, and minimum length inserted into the filter. The constant torque clamp on the filter end is pulled through the enclosure.

With the last two points in conjunction, I wonder if the enclosure was sized for a 1st gen Miata, which might be 'flatter' there. If there are 2 different enclosures, I got the wrong one.

There was no clamp in my kit that could have fit around the formed silicone compressor inlet pipe on the MAF replacement end was in use on the turbo outlet side of the intercooler pipe, none could even reach around if separated at the tension point. There should be a note that the clamps for the MAF on the FM intake kit are large enough, and I repurposed one of those to secure it.


The relay mounting bolt holes on the front of the air filter enclosure are too small for M6 bolts, and are approximately the right size if I was going to run a tap through to accept the threading of M6 bolts. I ended up dremeling out the holes larger to allow an M6 bolt to pass through, so I could secure the relays. No M5 or lower bolts were supplied, and I didn't have any on hand that might have been used otherwise.

There is no apparent option for plugging the recirc line if you chose to not use it. There is only a description of how to recirc, but not what to do if you are not recircing.

If you ARE recircing the BOV, there is no included recirc line, and the one for the FM complete intake kit is about 4 inches too short, as both the compressor inlet side and the BOV are moved farther apart than where they were. 3/4" hose is cheap and easy to obtain fortunately.

There is no mention anywhere in the manual of when you reconnect the oil dipstick. If someone forgets that, it could cause all sorts of problems.

The hard rubber 3/8" hose for the compressor inlet to oil separator pipe (that is integrated into the strut bar) isn't very appropriate. It is nearly impossible to get it to flex internally enough to get it on the strut bar. If it was silicone, it would flex enough without any problem, but hard rubber does not work very well. Silicone would also be far more flexible to bend down to the compressor inlet pipe. The supplied hose is under a lot of tension, and it's almost a struggle to get the strut bar bolted back in place with that hose on if I have to remove the strut bar later (as I did a few times due to timing belt adjustment issues not related to the FM2 kit). If the hose needs to be hard rubber, then a formed rubber one with a curve in it would be better, and perhaps a 1/2" ID, and let a clamp secure it from there.
