Author Topic: Kaiser's '04 MSM Build Thread  (Read 9826 times)
0 Members and 1 Guest are viewing this topic.
KaiserM715
First Gear
*
Posts: 37



« on: February 01, 2016, 05:21:31 PM »

A couple of weeks ago, I negotiated an upgrade of my beater '01 NB when I sold my wife's G8 to get her a minivan.  After some looking around, I found one with 60kish on the clock with timing belt, water pump and seals recently done, along with a new cloth soft top.  The car is in great condition inside and out with only a few small chips in the paint.  A deal was made to trade my '01 in for this one and I drove it home.

Here she is after I got her all cleaned up:




Planned use for the car:
-Split daily driver duties with my truck
-Autocross
-Some track days, but nothing too serious
-Occasional road trips

Planned mods:
-Upgraded cooling
--I live in Houston and refuse to go without AC, I don't want heat to be an issue when I am having fun.
-MR shifter
-Wheels / tires for track use
--I have some ideas, but will likely be next year
-Suspension
--I have some ideas, but will likely be next year
-FM LE or equivalent
-BEGi Reflash
« Last Edit: February 01, 2016, 05:26:07 PM by KaiserM715 » Logged

'04 MazdaSpeed Miata - Velocity Red
Stock, for now

'10 Ford Raptor
'67 Jeep Kaiser M715 - sold
KaiserM715
First Gear
*
Posts: 37



« Reply #1 on: February 01, 2016, 05:37:30 PM »

Cooling mods:
Flying Miata crossflow radiator and Stage II fans are on their way.  I have also been in contact with joeereid to get a pair of OEM connectors.  Here is the thread I am using for reference:
http://www.mazda-speed.com/forum2/index.php/topic,27337.75.html
Logged

'04 MazdaSpeed Miata - Velocity Red
Stock, for now

'10 Ford Raptor
'67 Jeep Kaiser M715 - sold
SilverMiataRacer
Global Moderator
Fifth Gear
*****
Posts: 25931



WWW
« Reply #2 on: February 01, 2016, 06:47:04 PM »

You need to add a rollbar to that list of mods to do track days.
Logged

Larry

4 Miatas but who's counting!!   Cool

White Knight    1991 Crystal White   #99 CSP
Silver Bullet     1992 Silverstone     #17 SM2  FM I+ Turbo  (Gone but not forgotten)
Honey B          1992 Sunburst Yellow #99 SM2 J.R. M45
Whooosh         2004 Titanium MazdaSpeed MX5  #403 of 4000
Subie              2006 Steel Gray WRX STi Cobb Stage 2 (Gone but not forgotten)
No name yet    2008 Velocity Yellow Tintcoat Z06 Corvette
No Name yet    2014 Ashen Grey Metallic Camaro 2SS 1LE

“There are only three sports: mountain climbing, bull fighting, and motor racing. All the rest are merely games.”
– Ernest Hemingway
m3fan4ever
Third Gear
***
Posts: 146



« Reply #3 on: February 01, 2016, 06:56:01 PM »

Car looks to be in great condition. Congrats! It looks like the MX-5 and Mazdaspeed badges are on opposite sides from stock. The MX-5 is on the driver's side and mazdaspeed on the passenger side usually. 99.9% of people will never notice, I just thought it was interesting.

Also, wheels/tires make for a better ride for DD duty if you go with smaller/lighter wheels with larger profile tires. I would consider something that can be used for DD and track use (2 sets are best if you have the $$ of course).
« Last Edit: February 01, 2016, 06:59:20 PM by m3fan4ever » Logged

2004 MSM Ti GT #1796 - Purchased 12/13
Flyin' Miata "Little Enchilada"; Flyin' Miata "Happy Meal" (10.3 lb flywheel); 15x7 Advanti Storm S1, Dunlop Direzza DZ102; Tein Street Advance Coilovers; Hawk HPS Brake Pads; Mazda Competition Motor Mounts; MiataRoadster Tall Angled Short Shifter Kit, VMS Racing Type-R Shift Knob; KOYO Hyper-V 36mm Radiator; Autometer Boost Gauge, Linear Water Temp Gauge Mod, Oil Pressure Light Mod; Xentec HID Conversion - 6000K 55W; Plastidipped Badges
KaiserM715
First Gear
*
Posts: 37



« Reply #4 on: February 01, 2016, 07:05:22 PM »

You need to add a rollbar to that list of mods to do track days.
True, I forgot to mention that.
Logged

'04 MazdaSpeed Miata - Velocity Red
Stock, for now

'10 Ford Raptor
'67 Jeep Kaiser M715 - sold
KaiserM715
First Gear
*
Posts: 37



« Reply #5 on: February 01, 2016, 07:08:11 PM »

Car looks to be in great condition. Congrats! It looks like the MX-5 and Mazdaspeed badges are on opposite sides from stock. The MX-5 is on the driver's side and mazdaspeed on the passenger side usually. 99.9% of people will never notice, I just thought it was interesting.
I think there is other evidence that points to a repaint (at least front and rear), this further contributes to that.
Also, wheels/tires make for a better ride for DD duty if you go with smaller/lighter wheels with larger profile tires. I would consider something that can be used for DD and track use (2 sets are best if you have the $$ of course).
That was my thinking, too.
Logged

'04 MazdaSpeed Miata - Velocity Red
Stock, for now

'10 Ford Raptor
'67 Jeep Kaiser M715 - sold
JCALD
Third Gear
***
Posts: 127



« Reply #6 on: February 14, 2016, 01:04:40 AM »

A couple of weeks ago, I negotiated an upgrade of my beater '01 NB when I sold my wife's G8 to get her a minivan.  After some looking around, I found one with 60kish on the clock with timing belt, water pump and seals recently done, along with a new cloth soft top.  The car is in great condition inside and out with only a few small chips in the paint.  A deal was made to trade my '01 in for this one and I drove it home.

Here she is after I got her all cleaned up:




Planned use for the car:
-Split daily driver duties with my truck
-Autocross
-Some track days, but nothing too serious
-Occasional road trips

Planned mods:
-Upgraded cooling
--I live in Houston and refuse to go without AC, I don't want heat to be an issue when I am having fun.
-MR shifter
-Wheels / tires for track use
--I have some ideas, but will likely be next year
-Suspension
--I have some ideas, but will likely be next year
-FM LE or equivalent
-BEGi Reflash
Nice.  Looks just like mine before adding the roll bar and a few other items.
Logged

Begi Reflash, LE without FM intercooler, Harddog Sport Roll Bar, Seat Lowering Rails, Hard Top w/Carbon Wrap, PLX multi gauge in Rear View Mirror, 3.63 gears
KaiserM715
First Gear
*
Posts: 37



« Reply #7 on: February 22, 2016, 06:18:34 PM »

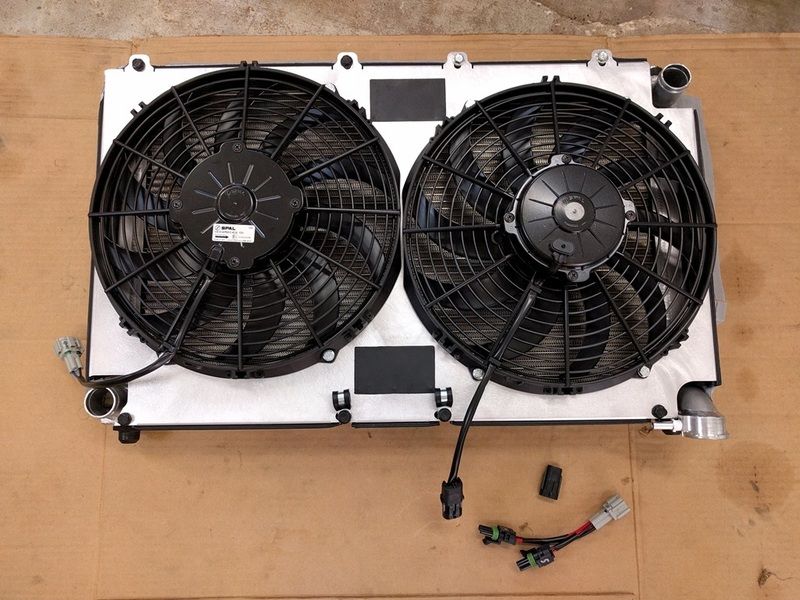

First big job / upgrade on the car is complete: Flyin' Miata cross-flow radiator and Stage II fan kit.  The condenser fan was out when I purchased the car, and I know I will be keeping A/C (I live in Houston), plus I will be adding power mods / intercooler, so I decided to do this as my first big mod.

Threads used for reference:
FM Crossflow Radiator and Spal Fan Install - millsj
http://www.mazda-speed.com/forum2/index.php?topic=25105.0

FM Stage 2 fans - joeereid
http://www.mazda-speed.com/forum2/index.php/topic,27337.0.html

Additional tools:
-Hose clamp pliers (these made my life much easier...)
http://www.astrotools.com/index.php/hose-clamp-pliers.html

Items upgraded / replaced:
-Radiator
-Fans
-Upper / lower radiator hoses
-Heater hoses
-Thermostat

Since the bulk of the install is covered in the two threads referenced above, I will only offer my comments on the install and where I differed.

I got in touch with Joey and discussed the connector situation as I wasn't a big fan of cutting up the stock wiring harness.  As someone who doesn't want 1000 of them, they are essentially unobtanium.  Thankfully Joey had a pair of connectors and associated parts he was willing to sell to me.  I made the comment to FM when they gave me a follow up call that they should include them in future kits.  They are weather-proof and the Spal connectors are not.  One additional thing I added was a second pigtail to allow for the wiring swap for Hydra controlled fans in the future.  I used WeatherPacks to make the connection in between the fan and OEM connector.  One connector for OEM ECU control and another for Hydra control.

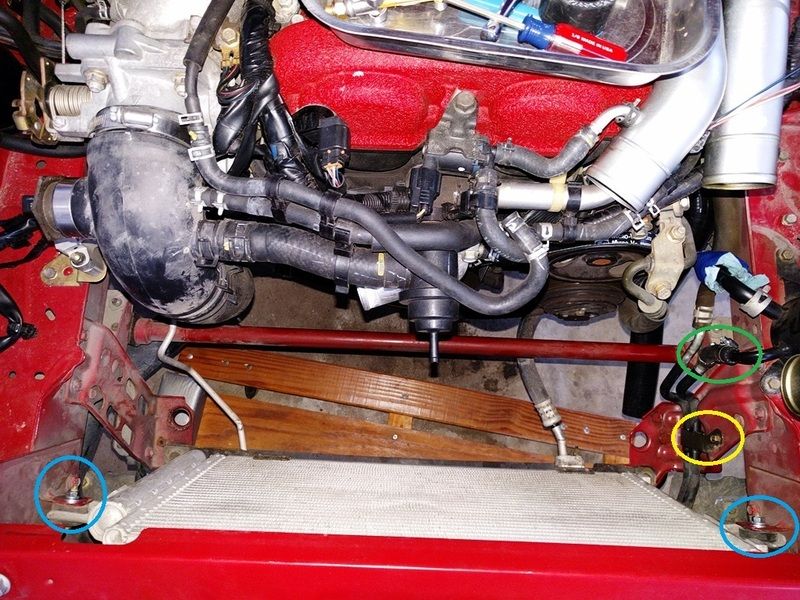

I relocated the condenser in front of the brackets (missed that step in the instructions, eventually figured it out, blue circles).  For the PS line relocate, I had to cut the line (green circle) as the rubber had hardened and stiffened to the point that there was no alternative.  I drilled the hole in the radiator support bracket while it was off of the car and squirted a little spray paint for corrosion control (yellow circle).



The most difficult part of the install was removing the lower radiator hose from the block.  I removed the airbox, several brackets and the PS line from the reservoir (already drained) to the pump.  I eventually cut it as close as I could and then used needle nose vise grips to work the clamp free.  I installed a FM silicone hose and used Jegs t-bolt clamps.  I am not happy about the routing on the silicone hose and had to sleeve it in several locations where it makes contact with other things.  The next time I drain the cooling system, I am going to put a stock hose back on.
Logged

'04 MazdaSpeed Miata - Velocity Red
Stock, for now

'10 Ford Raptor
'67 Jeep Kaiser M715 - sold
millsj
Fifth Gear
*****
Posts: 2575



« Reply #8 on: February 22, 2016, 07:21:04 PM »

Since you live in Houston, you made a good first choice in upgrades.  You will also now get the extra 5 hp of thrust from the fans.   Grin  Those fans really do move a lot of air!
Logged

FM full intake, FM DP and Exhaust, AFCO Shocks (550/400 lb springs), FM O2 Modifier, Hallman MBC with in-cabin controller, Stewart-Warner Boost Gauge, HDHCDD with Harness Bar, RB 1.125" Front Sway Bar, E-bay Delta Fin 27x7x2.5 FMIC, Ultra-Shield Rally Sport seats, Carbotech XP-12/10 pads, SS Brake Lines, PLX DM-100 Multi-Gauge, FM Crossflow Radiator, Spal Fans, FM Oil Cooler, custom in-dash oil pressure warning LEDS, i-Shift LED shift lights, 15x9 bronze 6UL track tires, COT NASCAR wing, DIY front splitter, fully ducted radiator.
joeereid
Fifth Gear
*****
Posts: 1156



« Reply #9 on: February 22, 2016, 09:24:39 PM »

Clean looking pigtails! Make sure you keep the stock under tray for maximum cooling efficiency.
Logged

05 Mica, Sparco Speed, Hard Dog ACE with custom harness bar, Ultrashield 6 point harnesses,FM complete intake, O2 mod, FM downpipe, MR short shifter. Xida 700/400, 3.63 R+P (Spare), 3:9 R+P (current),EWUSA FMIC, Derale hardline delete PS cooler, FM Stage 2 fans w/ OEM connectors, Custom fab IC/Rad ducting, custom cowl intake/heatshield, Ultragauge,Rumblestrip Predictive Lap timer, APR custom mounted rear wing, Custom made streetable/removable front splitter, Run-Cool hood Louvers
KaiserM715
First Gear
*
Posts: 37



« Reply #10 on: February 22, 2016, 09:54:03 PM »

The fans do indeed move a lot of air.  They didn't hardly stay on and dropped the temp 15+ deg.
Clean looking pigtails! Make sure you keep the stock under tray for maximum cooling efficiency.
Thanks.  Yes, it is back on.
Logged

'04 MazdaSpeed Miata - Velocity Red
Stock, for now

'10 Ford Raptor
'67 Jeep Kaiser M715 - sold
KaiserM715
First Gear
*
Posts: 37



« Reply #11 on: February 25, 2016, 01:53:35 AM »

The most difficult part of the install was removing the lower radiator hose from the block.  I removed the airbox, several brackets and the PS line from the reservoir (already drained) to the pump.  I eventually cut it as close as I could and then used needle nose vise grips to work the clamp free.  I installed a FM silicone hose and used Jegs t-bolt clamps.  I am not happy about the routing on the silicone hose and had to sleeve it in several locations where it makes contact with other things.  The next time I drain the cooling system, I am going to put a stock hose back on.
As an addendum, I found this thread helpful for getting the hose off:
http://www.mazda-speed.com/forum2/index.php?topic=31302.0
Logged

'04 MazdaSpeed Miata - Velocity Red
Stock, for now

'10 Ford Raptor
'67 Jeep Kaiser M715 - sold
barmato
Fifth Gear
*****
Posts: 743


« Reply #12 on: February 25, 2016, 02:49:15 AM »

What is the point of the pigtails?  Is there sometime different about the spal fans from the stock fans that requires this?  The Hydra controls the stock fans fine through the standard wiring.  What am I missing?

Oh and I agree on your assessment of the FM lower radiator hose.  The fitment of that is crap, very disappointing.
Logged
KaiserM715
First Gear
*
Posts: 37



« Reply #13 on: May 10, 2016, 03:41:12 PM »

What is the point of the pigtails?  Is there sometime different about the spal fans from the stock fans that requires this?  The Hydra controls the stock fans fine through the standard wiring.  What am I missing?
It is my understanding that the Hydra uses the other pair of wires to control the fan vs the pair that the OEM ECM uses.  This allows me to switch between the two configs easily without repinning connectors.  As I have to get emissions testing once a year, I will have to swap back to the OEM ECM once a year after I go to Hydra (whenever that might be).
Logged

'04 MazdaSpeed Miata - Velocity Red
Stock, for now

'10 Ford Raptor
'67 Jeep Kaiser M715 - sold
SilverMiataRacer
Global Moderator
Fifth Gear
*****
Posts: 25931



WWW
« Reply #14 on: May 10, 2016, 04:29:02 PM »

The stock fans are multi speed and have 3 wires each.  The Spal fans are single speed and only use 2 wires.
Logged

Larry

4 Miatas but who's counting!!   Cool

White Knight    1991 Crystal White   #99 CSP
Silver Bullet     1992 Silverstone     #17 SM2  FM I+ Turbo  (Gone but not forgotten)
Honey B          1992 Sunburst Yellow #99 SM2 J.R. M45
Whooosh         2004 Titanium MazdaSpeed MX5  #403 of 4000
Subie              2006 Steel Gray WRX STi Cobb Stage 2 (Gone but not forgotten)
No name yet    2008 Velocity Yellow Tintcoat Z06 Corvette
No Name yet    2014 Ashen Grey Metallic Camaro 2SS 1LE

“There are only three sports: mountain climbing, bull fighting, and motor racing. All the rest are merely games.”
– Ernest Hemingway
